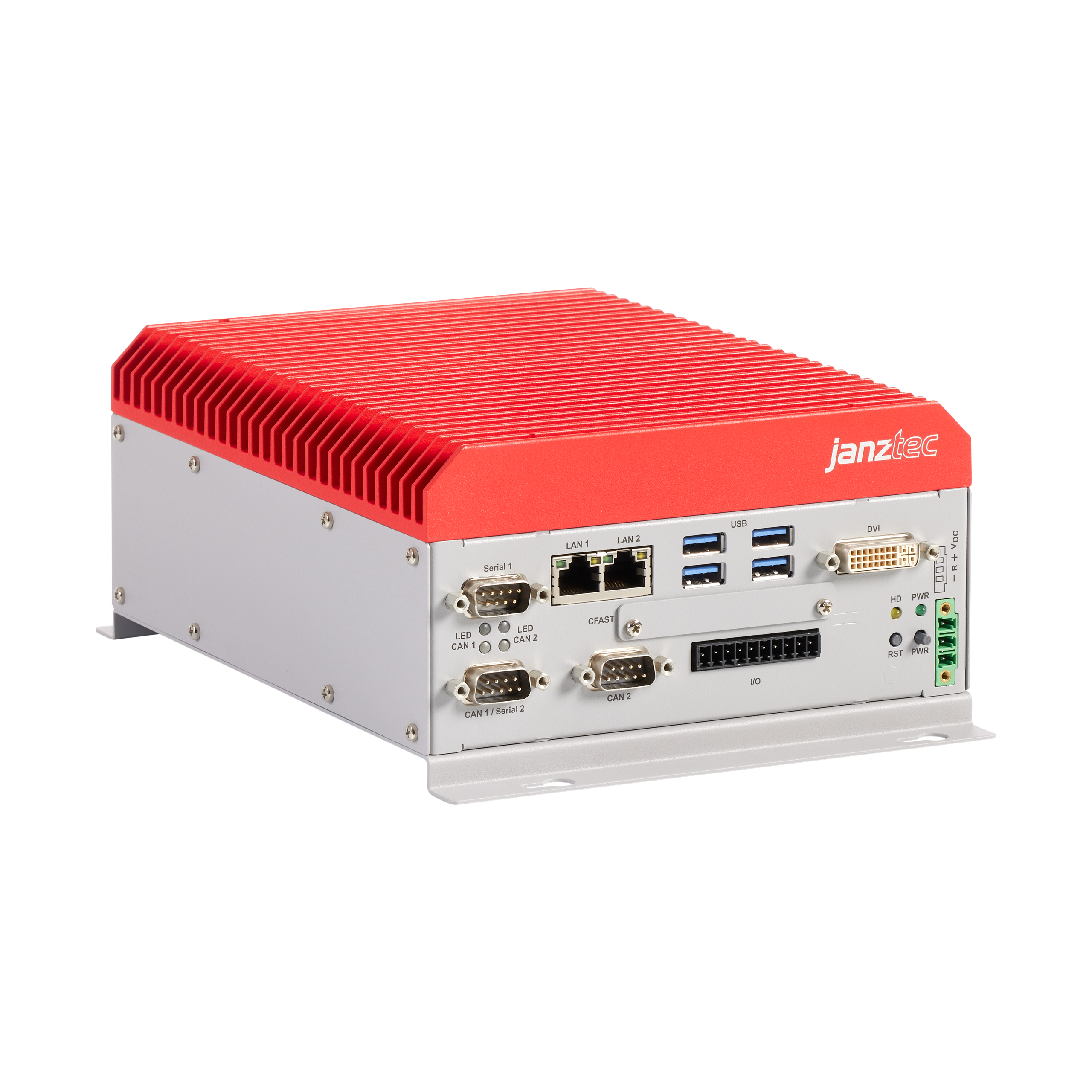

Janz Tec emPC-CX+

  • AMD Ryzen™, Intel® Atom™ and Intel® Core™ CPU support

  • Up to 48 GB main memory

  • 2 x 10/100/1000 MBit/s Ethernet, 4 x USB 3.0, 1 x RS232/485

  • 2 x CAN/CANopen (optionally with digital IO) or 1 x CAN/CANopen, 1 x RS232 (optionally with digital IO)

  • Up to 2 internal SATA disk ports, Up to 2 x PCIe (x4) or 4 x PCIe (x1) expansion slots

Flexible embedded system based on COM Express®

The emPC-CX+ is a very flexible embedded Box PC System. It combines a stable metal housing with a variable set of CPU performance and a wide range of interfaces. The system is based on a carrier board that handles power supply and provides a socket for a COM Express® module. Furthermore a PCIe mini card slot and PCIe-X16 are available onboard. On the front side the board offers CAN, USB and serial interfaces, a DVI connector, 8 I/O pins and an external CFast card slot for an easy storage medium exchange.
